Product Details:
|
Capacity: | 5 Gallons | Chemical Resistant: | Yes |
---|---|---|---|
Color: | Customized Colors | Handle: | Metal Handle With Plastic Grips |
Lid: | Flower Edge Lid | Material: | Tinplate |
Product Name: | 5 Gallon Pails And Buckets | Shape: | Round |
Stackable: | Yes | UV Resistant: | Yes |
Usage: | Storage Of Chemicals | Thickness Of Tinplate: | 0.32-0.42mm |
High Light: | Chemicals 5 Gallon Paint Bucket,Open Head 5 Gallon Paint Bucket,0.42mm open head pail |

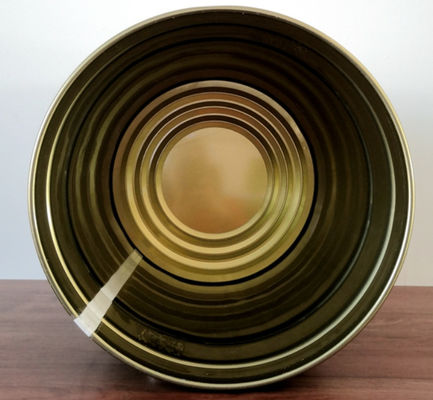

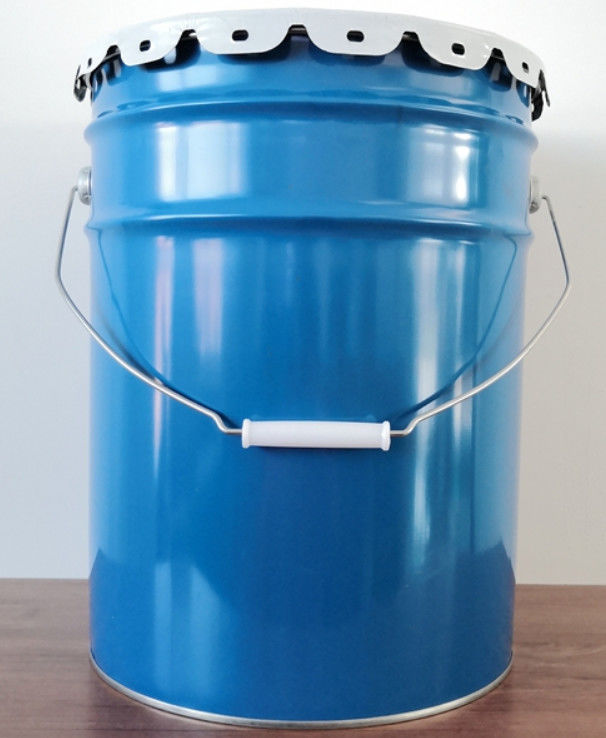

1 Introduction of 5 gallon open head steel buckets with epoxy phenolic linings
Steel buckets with epoxy phenolic linings are a great choice for those who are looking for a reliable and durable way to store and transport liquids. These 5 gallon open head steel buckets are ideal for industrial applications as well as for home use.
One of the biggest advantages of these steel buckets is their strength and durability. The steel construction provides a sturdy base that can withstand the rigors of handling and transport. Additionally, the epoxy phenolic lining helps to protect against rust, corrosion, and other types of damage that can occur over time.
Another benefit of using these steel buckets is their versatility. They can be used to store a wide range of liquids, from water to harsh chemicals. This makes them an excellent choice for a variety of industries, including those in the automotive, chemical, and manufacturing fields.
In addition to their strength and versatility, these steel buckets are also easy to use and maintain. The open head design makes it easy to fill and dispense liquids, while the epoxy phenolic lining can be easily cleaned and maintained to ensure long-lasting performance.
Overall, if you're looking for a reliable and durable way to store and transport liquids, steel buckets with epoxy phenolic linings are an excellent choice. With their strength, versatility, and ease of use, they are sure to provide years of reliable service.
2 Technical parameters
Item | Capacity | Top Dia | Bottom Dia | Height | Lid | Handle |
Water Base |
Solvent Base |
FH05A | 5L | 175mm | 175mm | 225mm | Yes | Yes | Yes | Yes |
FH10A | 8L | 230mm | 210mm | 250mm | Yes | Yes | Yes | Yes |
FH10A | 10L | 230mm | 210mm | 310mm | Yes | Yes | Yes | Yes |
FH16A | 16L | 295mm | 275mm | 300mm | Yes | Yes | Yes | Yes |
FH18A | 18L | 295mm | 275mm | 330mm | Yes | Yes | Yes | Yes |
FH20A | 20L | 295mm | 275mm | 375mm | Yes | Yes | Yes | Yes |
FH23A | 23L | 295mm | 275mm | 420mm | Yes | Yes | Yes | Yes |
FH25A | 25L | 295mm | 275mm | 450mm | Yes | Yes | Yes | Ye |
Gauge Thickness:27-30 GaugeGallon Range: 4-6.5 Gallon
Important components of UN Steel Buckets with Lever Lock Ring

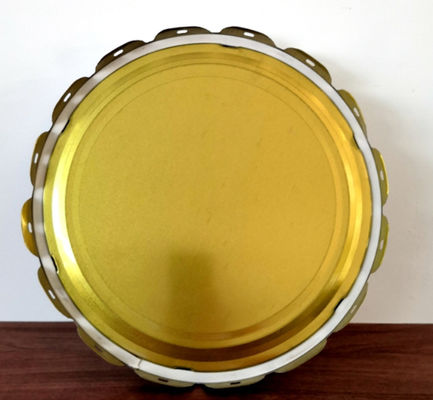

1.Lever locking ring lid
.Removable heavy gauge steel lid and lever locking ring combination for both UN rated or non-UN steel pail.re-sealable
Lid seal
For UN rated container rubber and EPDM gaskets have good performance of air tightness and anti-solvent property,they are exclusived used for UN containers.
3.Bottom sealing
.Five layers sealing for non-UN rated steel pail
.Seven layers sealing for UN rated steel pail
3.Handle
Steel handle with white or black plastic becket pass the test of handle strength test hanging 55kg in air for 48 hours.
4 Advantages
1.Factory test room for drop test,stacking test,hydraulic pressure test,leakproofness,bale handle strength.
2.Different moulds for tin cans and adhesive cans.So here we can supply one-stop steel containers purchasing service.
3.Have plastic pail and other plastic moulds for pail accessories like different pail covers.We also can make different moulds for not only plastic containers but also other PP,PE,ABS products.
5 Our Company
Yixing Feihong Steel packaing Co.,Ltd has more than 12 years pail making history,occupies 1.5 acres and has 36 staffs who are very skilled at two tin pail lines which including whole system of tin container making system,Tin sheet split system,lid and bottom press shop and printing working shop with these we can complete 0.1-20L tin container making.And we aslo have 8 plastic injection machines for 5-20L plastic pails.
6 Production Line and Packaging
7 Certificate
8 Clients Visiting Factory
9 FAQ
Q1. Can I have a sample order for metal pails?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 7 days for Sample preparing , 10 working days for mass production.
Q3. Do you have any MOQ limit for metal pails?
A: Low MOQ, 1pc for sample checking is available. Mass Production Quantity is negotiable.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 5-6 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for metal pails?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on metal pails?
A: Yes. Please inform us formally before our production.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.1%.
Seconly if there is something wrongs with our metal pails, we will compensate our clients
