Product Details:
|
| Anti-corrosion: | Yes | Anti-rust: | Yes |
|---|---|---|---|
| Capacity: | 5 Gallon | Coating: | Epoxy Phenolic Coating |
| Color: | Customized Colors | Handle: | Metal Hanlde With Plastic Grips |
| Heat-resistant: | Yes | Leak-proof: | Yes |
| Lid: | Castellated Lid | Material: | Tinplate |
| Pressure-resistant: | Yes | Shape: | Round |
| Usage: | Chemicals | ||
| Highlight: | 5 Gallon chemical resistant bucket,UN Rated chemical resistant bucket,Round empty metal pail |
||
1. Introduction
Yixing Feihong Steel Packaging Co.,Ltd is located in Nancao town Yixing Jiangsu province which is steel pail and plastic pail making industry center of China.We have advantage of lower raw material price and experienced workers here.And our capacity for 5-25L pail is 12000pcs one day and 0.1-5l tin cans 60000pcs one day.For accessories of steel container,we also make it by ourselves, we have pressing working shops.Now we make steel container and accessories for 20 countries all over the world.
2 Description

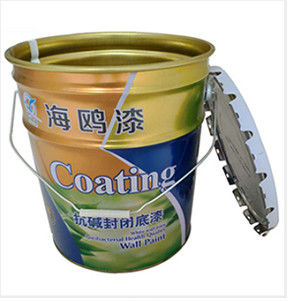

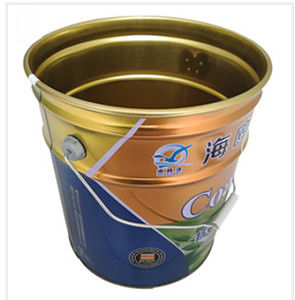

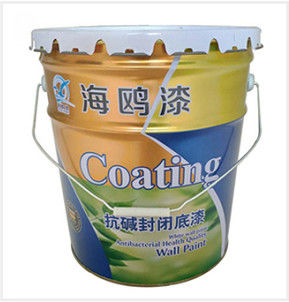

UN Rated 5 Gallon Metal Pails with Castellated Lid are ideal for storing and transporting hazardous chemicals. The UN rating means that the pail has been rigorously tested and certified to meet the highest standards for the safe handling and transportation of hazardous materials.
The 5-gallon size is perfect for storing smaller quantities of chemicals, and the metal construction provides superior durability and resistance to corrosion. The castellated lid ensures that the pail is completely sealed and prevents any leaks or spills during transport.
These pails are suitable for a wide range of hazardous chemicals, including corrosives, flammables, and toxic substances. They are commonly used in the chemical, pharmaceutical, and manufacturing industries for storage, mixing, and transportation of hazardous materials.
In summary, UN Rated 5 Gallon Metal Pails with Castellated Lid are a safe, durable, and reliable option for anyone looking to store or transport hazardous chemicals.
3 Technical parameters
| Product Name | UN Rated 5 Gallon Metal Pails for chemicals with castellated lid |
| Model No. | FHRB-20 |
| Material |
Tin/metal
|
| Dimension | Top DN:297mm Bottom DN:275mm,Height:365mm |
| Thickness | 0.28-0.42mm(27-30 Gauge) |
| Theoretical Volume | 20L |
| Certificate | UN,ISO |
| Inside Treated | Plain for slovent basing paint,inner coating for water basing paint |
| Outside Printing | CMYK print as customers’ design |
| Packaging design | Plastic film and pallet for pail,carton for lever lock ring lid |
| Lead Time | 10 days after advance payment |
Lid seal
For UN rated container rubber and EPDM gaskets have good performance of air tightness and anti-solvent property,they are exclusived used for UN containers.
Bottom sealing
.Five layers sealing for non-UN rated steel pail
.Seven layers sealing for UN rated steel pail
3.Handle
Steel handle with white or black plastic becket pass the test of handle strength test hanging 55kg in air for 48 hours.
4 Advantages
1.Factory test room for drop test,stacking test,hydraulic pressure test,leakproofness,bale handle strength.
2.Different moulds for tin cans and adhesive cans.So here we can supply one-stop steel containers purchasing service.
3.Have plastic pail and other plastic moulds for pail accessories like different pail covers.We also can make different moulds for not only plastic containers but also other PP,PE,ABS products.
4 Measurement of All Metal Pails
| Item | Capacity |
Top Diameter (mm) |
Bottom Diameter( mm) | Height( mm) | |
| 1 | 1L | 130 | 110 | 130 | |
| 2 | 2.5L | 180 | 140 | 170 | |
| 3 | 5L | 165 | 165 | 225 | |
| 4 | 8L | 230 | 210 | 250 | |
| 5 | 10L | 230 | 210 | 310 | |
| 6 | 10L | 245 | 225 | 275 | |
| 7 | 16L | 295 | 275 | 300 | |
| 8 | 18L | 295 | 275 | 330 | |
| 9 | 20L | 295 | 275 | 375 | |
| 10 | 23L | 295 | 275 | 420 | |
| 11 | 25L | 295 | 275 | 450 |
5 Various Lid Choice for Metal Pails
6 Production Line and Packaing
7 Certificate
8 FAQ
Q1. Can I have a sample order for metal pails?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 7 days for Sample preparing , 10 working days for mass production.
Q3. Do you have any MOQ limit for metal pails?
A: Low MOQ, 1pc for sample checking is available. Mass Production Quantity is negotiable.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 5-6 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for metal pails?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on metal pails?
A: Yes. Please inform us formally before our production.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.1%.
Seconly if there is something wrongs with our metal pails, we will compensate our clients.
